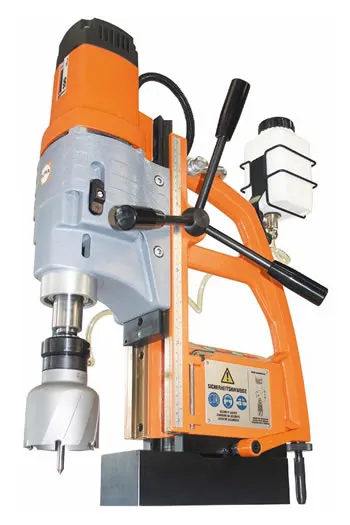

Alfra Rotabest 100RLE Magnetic Drills
Technical Data
- Core Drill: 12-100 mm
- Cutting Depth: 50/110mm
- Twist Drill: 1.0-16.0 mm with drill chuck up to Ø 32mm with Morse Taper
- Counter Sinking: 10 - 55mm
- Tapping with tap collets: Up to M30
- Tapping Attachment: Up to M30
- Input: 1800 Watts
- 4-speed gearbox: Right/Left
- 1.speed - 50-110 rpm
- 2.speed - 75-175 rpm
- 3.speed - 105-245 rpm
- 4.speed - 165 - 385 rpm
- Tool Holder: MT3eight
- Stroke: 245 mm
- Voltage: 110 & 230 V (50-60Hz)
- Magnetic adhesion: 20000 N
- Magnet Foot: 80 x 230mm 30° adj left/right, 10 mm back/forwards
- Type of Magnet: Rigid
- Weight: 28 kg
Included:
- Motor
- Spindle Control Panel
- Magnet Foot
- Arbor
- Depth Scale
- Hexagon screw for the adjustment of the motors´ stroke range
- Clamping lever for clamping the magnet foot
- Rear support
- Recess for safety belt
- Adjusting screws for adjusting the slide
- Standard scope of supply
- Transport Case
- Coolant Unit
- Coolant Spray
- Chip Remover
- Safety Belt
- Allan Key 2,5 mm
- Allan Key 6,0 mm
- Rotabest 100 Operational Manual
